PSR Die Spraying Robots

PSR1/2 FS

(80 - 2000-tonne closing force)

Our PSR die spray robots (PSR1/2 FS) offer a cost-effective and flexible spraying process. They are suitable particularly for the use with simpler/easier dies and enable a consistent, reproducible spraying in a regulated process with a tool on different dies. A simple programme change is enough.

  • Flexible robotic system
  • Individual spraying of the die through “propelled spraying”
  • Spray tool for several dies
  • Only the spray programme must be changed
  • Optional: The pressure control for the spray air pressure is programmable via the robot control
  • Combination with removal module is possible for removal of the cast part

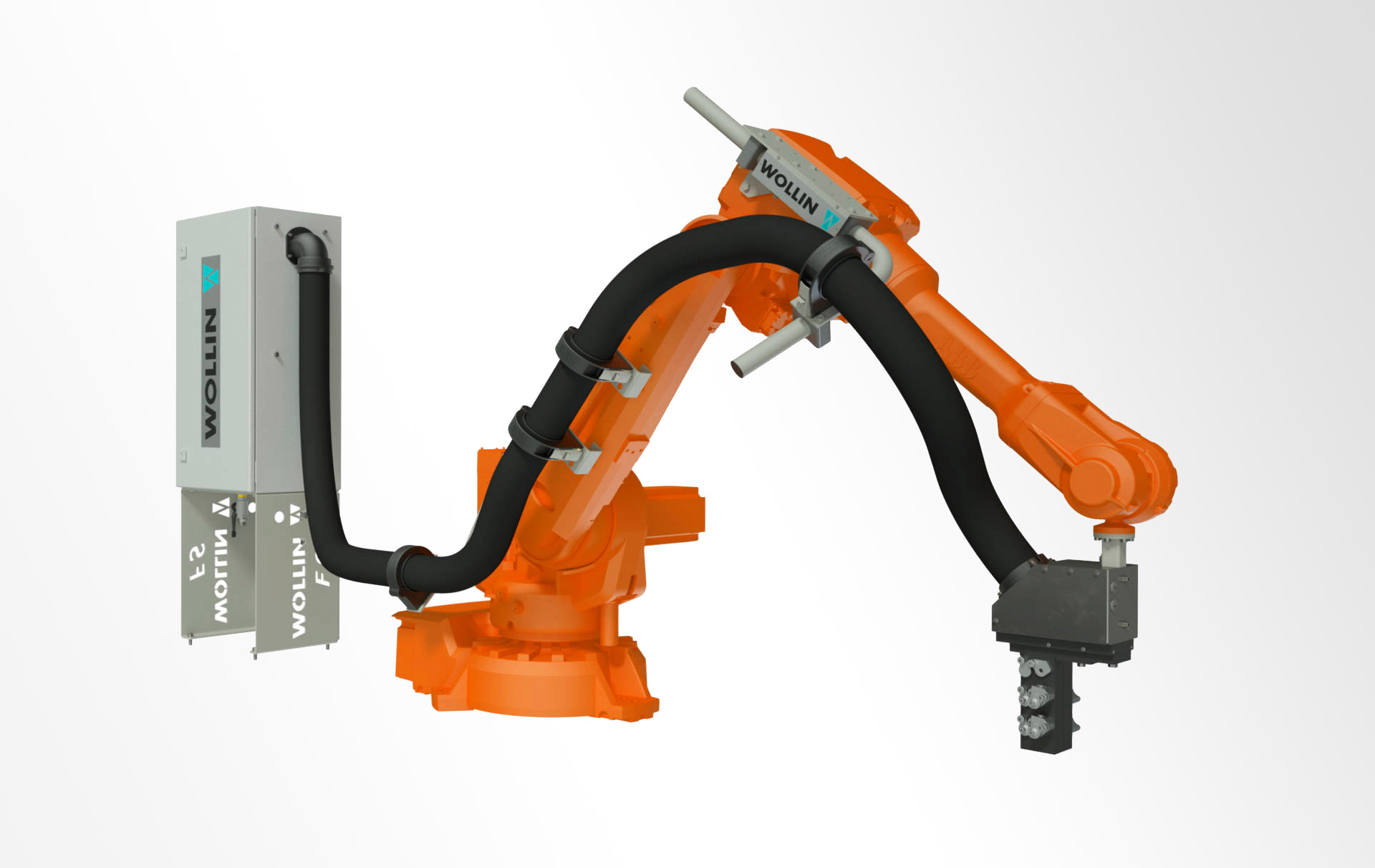

PSR1 FS
Robot spraying PSR1 FS

PSR2/3/4 MS

(160 - 5500-tonne closing force)

The line PSR 2/3/4 MS (MS=mask spraying) is compatible with all WOLLIN-spraying systems and is distinguished by its high flexibility in the process that is optimised by using the WOLLIN mask spray tool. The line allows for a high release agent and spray throughput (is achieved through the large media package) through the use of larger cross-sections for the air and release agent input and is distinguished by its intuitive operation.

  • Assembly of universal spray tool, individually adapted mask spray tools
  • Shorter process through mask spray tools
  • Strong spray and blow air
  • Short set-up times
  • Pressure control for spray air is programmable via the robot control
  • Robot user interface with WOLLIN spray software

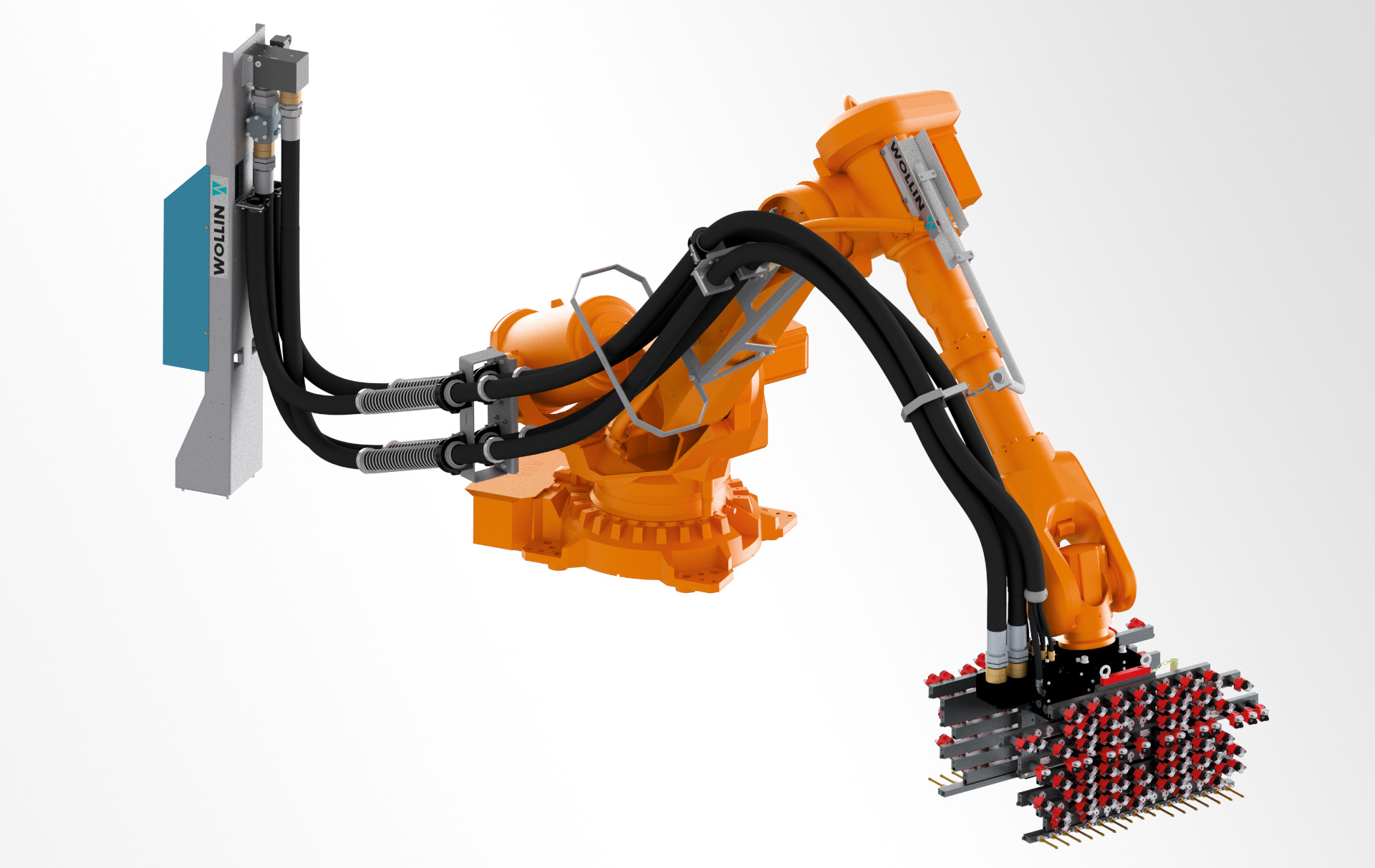

PSR3 MS
Robot spraying PSR3 MS
