Release Agent Supply

MDA 20/25/40/60/65/100

For fully automated conditioning and transporting of release agents to die spraying machine.

The mixing unit produces the mixture (concentrate with water) only when needed so that fresh emulsion is available at all times. No longer is cumbersome mixing required and the stagnant, partially segregated emulsions that were formed long before application are eliminated.

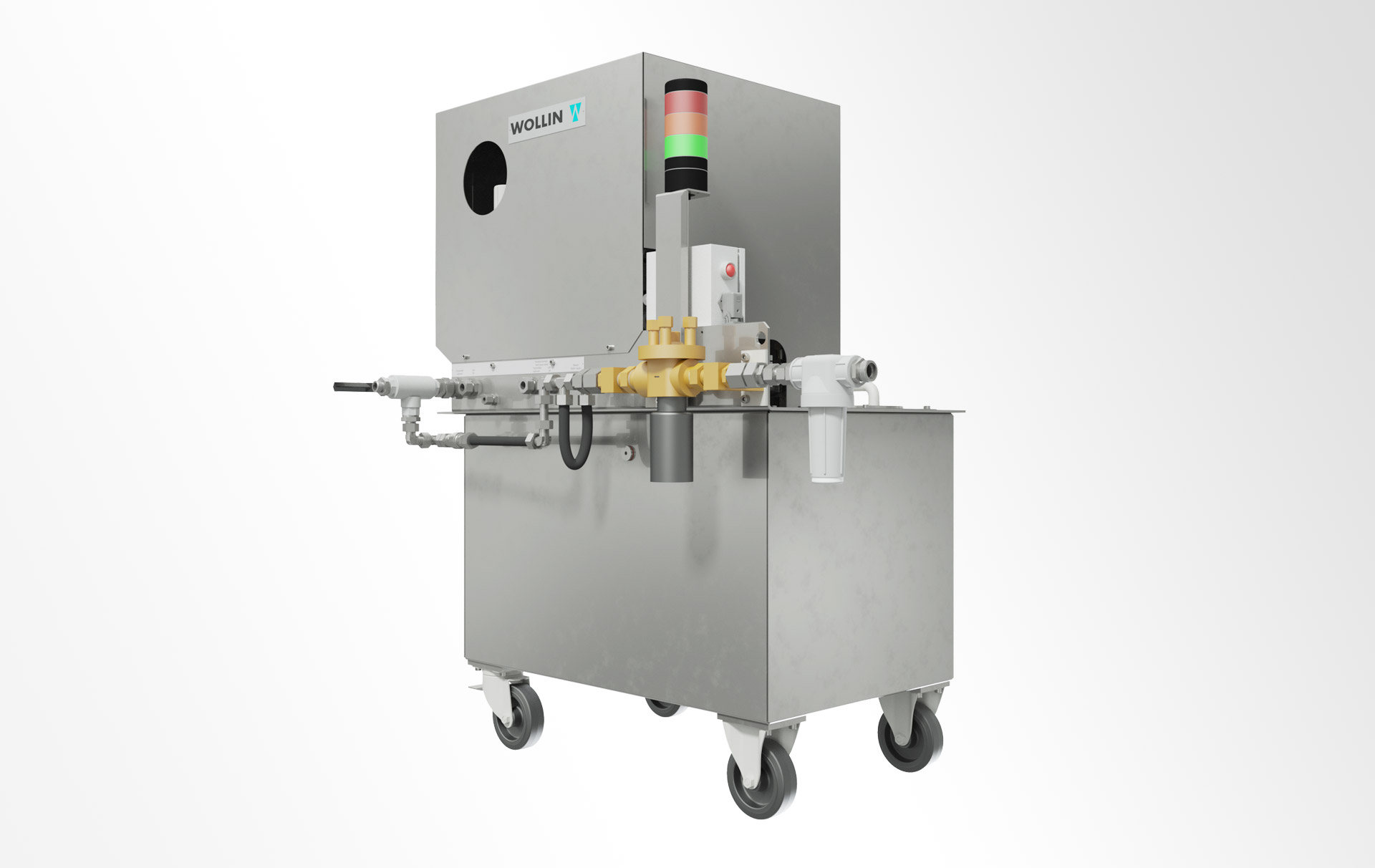

MDA20

  • Volumetric capacity concentrate 100l/mixture 50l
  • Spray agent amount max. 10 litre/cycle
  • Proportional dosing pump finely dosed from 0.5% - 2.5%, this corresponds to 1:200 to 1:40
  • Release agent mixture supply by means of downstream pressure stage
  • Medium pressure can be adjusted individually
  • Optional: Indicator light, backflow preventer and floating switch (concentrate)
MDA20

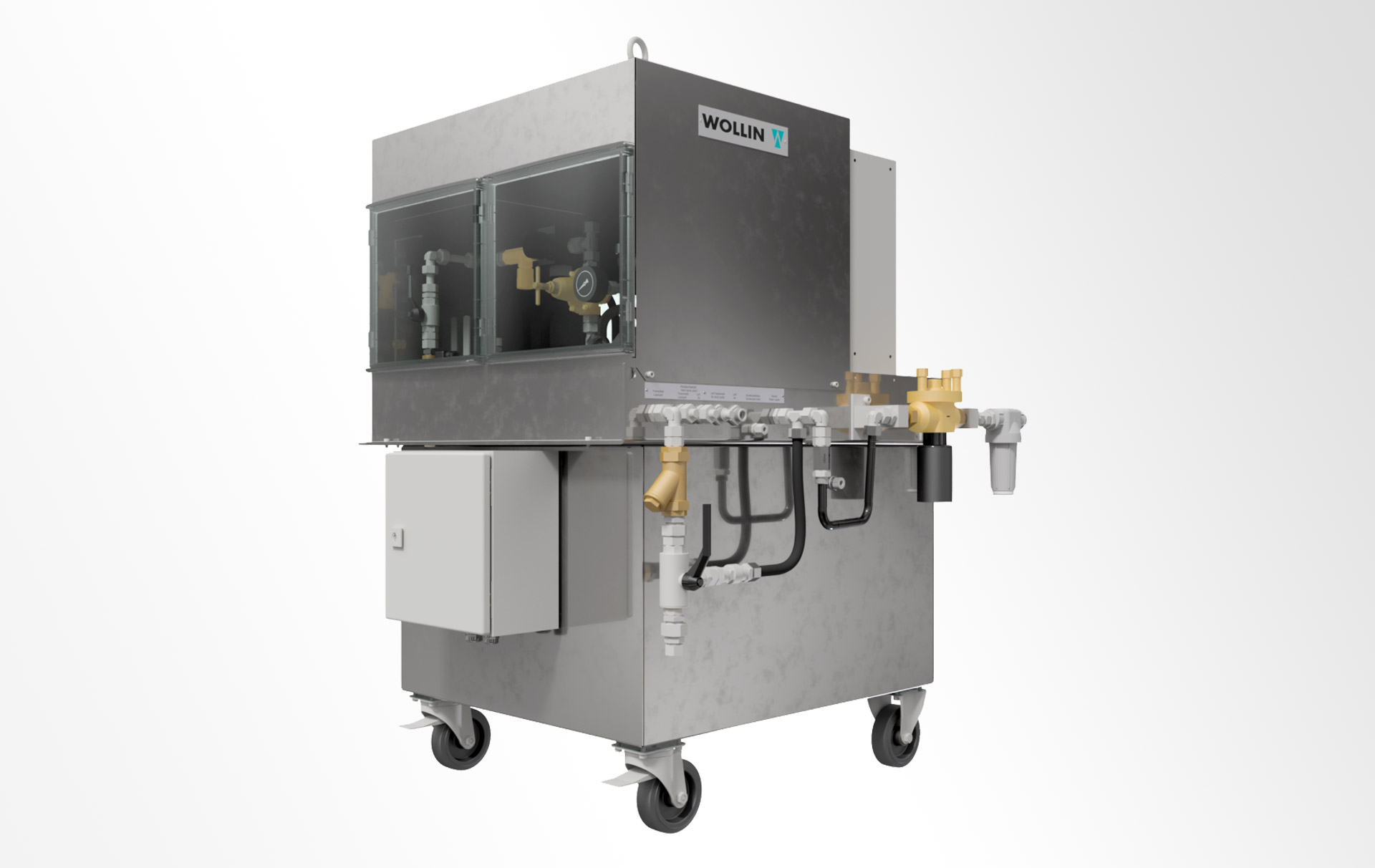

MDA25

  • Volumetric capacity concentrate 125l/mixture 71l
  • Spray agent amount max. 10 litre/cycle
  • electric hose metering pump finely dosed from 0.5% - 16%, / 1:200 to 1:6,25,  accuracy ± 1%
  • Economical through reliable compliance with the selected mixing ratio and thereby reduced consumption of separating agent concentrate
  • Release agent mixture supply by means of downstream pressure stage
  • Medium pressures can be adjusted individually, max. 8bar
  • Options: Indicator light, backflow preventer, Handspray pistol Pneumatic stirrer for the mixture. mechanic Float valve for automatic filling of the concentrate tank via ring line or barrel pump (no entrainment of dirt). Drum truck with pneumatic drum pump for safe and clean filling of the MDA25 incl. Connection and filling set.
MDA25

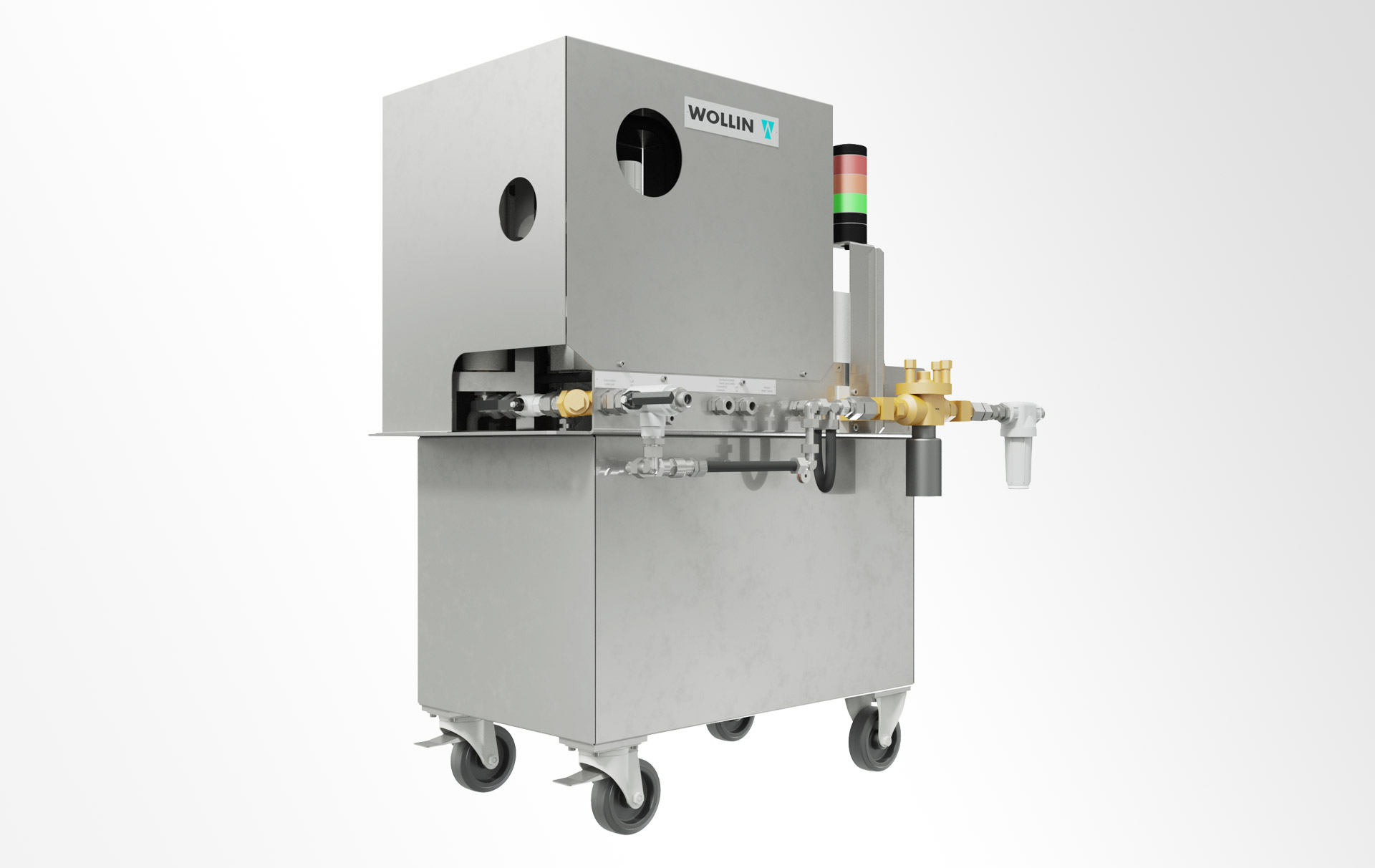

MDA40

  • Volumetric capacity concentrate 100l/mixture 50l
  • Spray agent amount maximum 60 litre/minute
  • Proportional dosing pump finely dosed from 0.5% - 2.5%, this corresponds to 1:200 to 1:40
  • Release agent mixture supply by means of dual diaphragm pump
  • Individually adjustable medium pressures, maximum 8 bar
  • Optional: Indicator light, backflow preventer and floating switch (concentrate)
MDA40

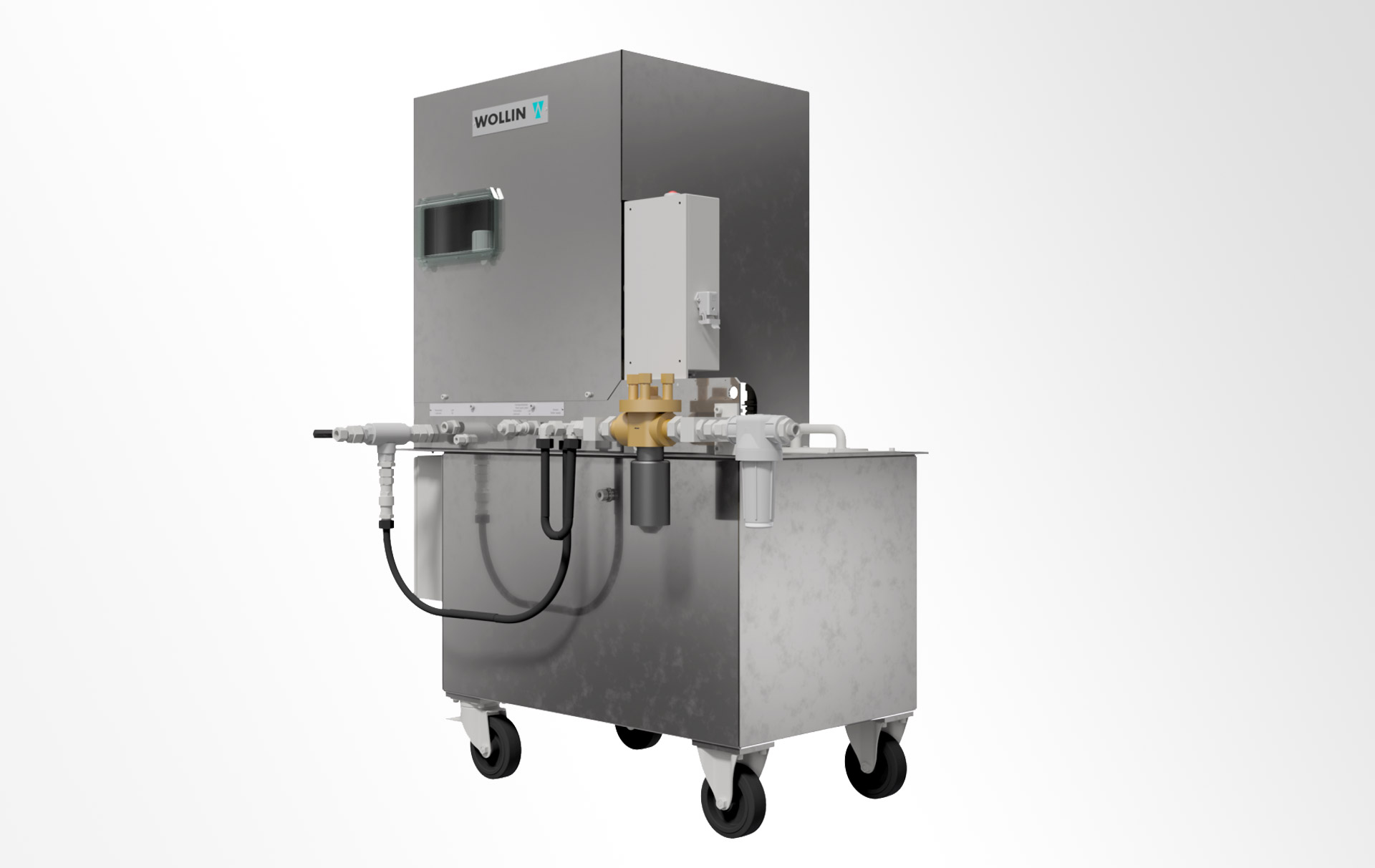

MDA60

  • Volumetric capacity concentrate 100l/mixture 50l
  • Spray agent amount max. 70 litre/minute
  • Proportional dosing pump finely dosed from 0.5% - 2,5%, / 1:200 to 1:40, precision: ± 5%
  • Economical through reliable compliance with the selected mixing ratio and thereby reduced consumption of separating agent concentrate
  • Release agent mixture delivery by means of Submersible pump with pump drive
  • Medium pressures can be adjusted individually, max. 6bar
  • Refilling the concentrate container without interrupting the production
  • Rinse the medium line to the PSM (using a 3-way valve)
  • Options: Indicator light, backflow preventer, Handspray pistol and floating switch (concentrate)
MDA60

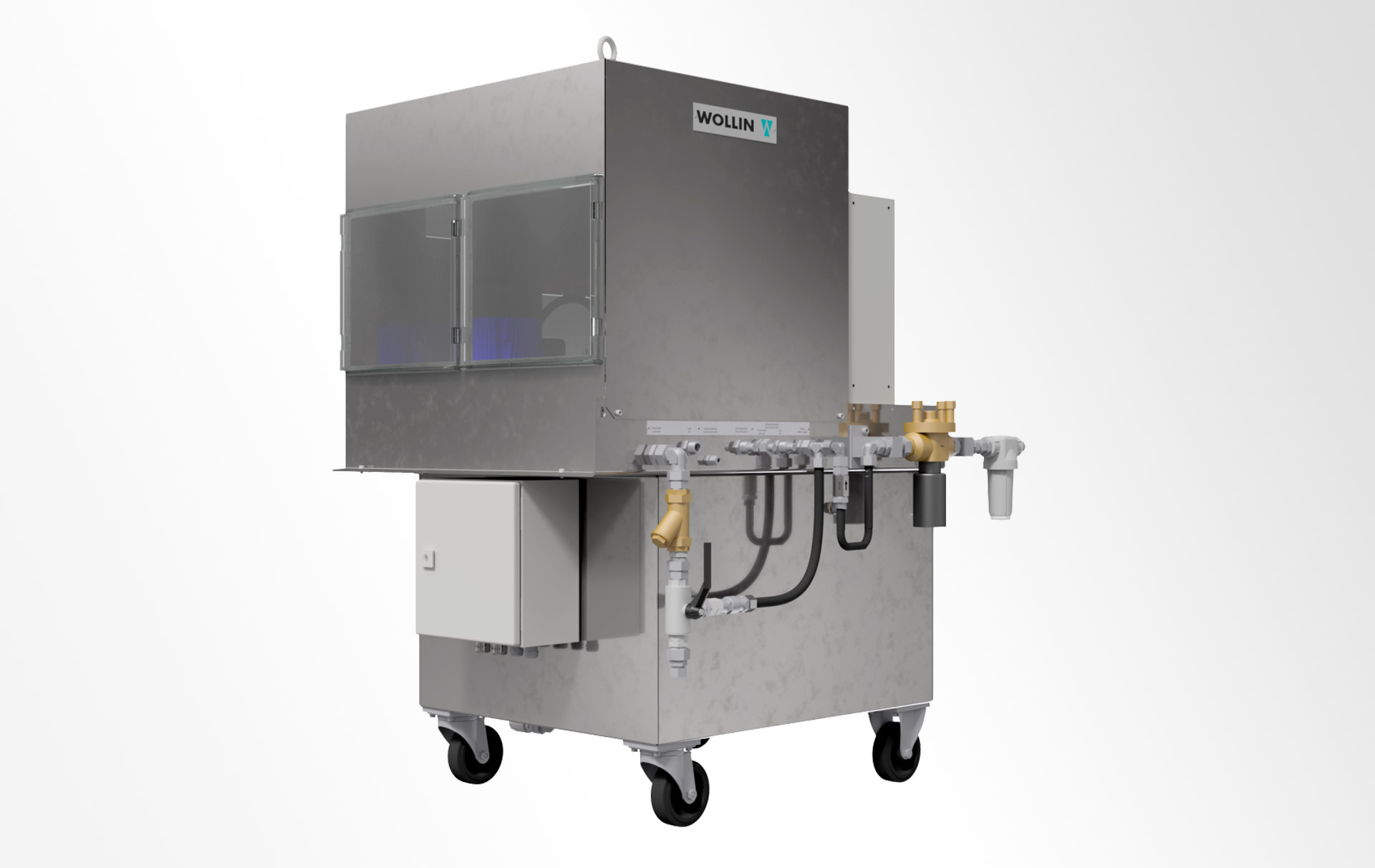

MDA65

  • Volumetric capacity concentrate 125l/mixture 71l
  • Spray agent amount max. 70 litre/minute
  • Proportional dosing pump finely dosed from 0.5% - 16%, / 1:200 to 1:6,25, precision: ±1%
  • Economical through reliable compliance with the selected mixing ratio and thereby reduced consumption of separating agent concentrate
  • Release agent mixture delivery by means of Submersible pump with pump drive
  • Medium pressures can be adjusted individually, max. 6bar
  • Refilling the concentrate container without interrupting the production
  • Filling opening with strainer and hinged lid
  • Options: Indicator light, backflow preventer, Handspray pistol, Turbidity sensor including display Pneumatic stirrer for the mixture. Mechanical float valve for automatic filling of the concentrate tank via ring line or barrel pump (no entrainment of dirt). Drum truck with pneumatic barrel pump for safe and clean filling of the MDA65 incl. Connection and filling set.
MDA65

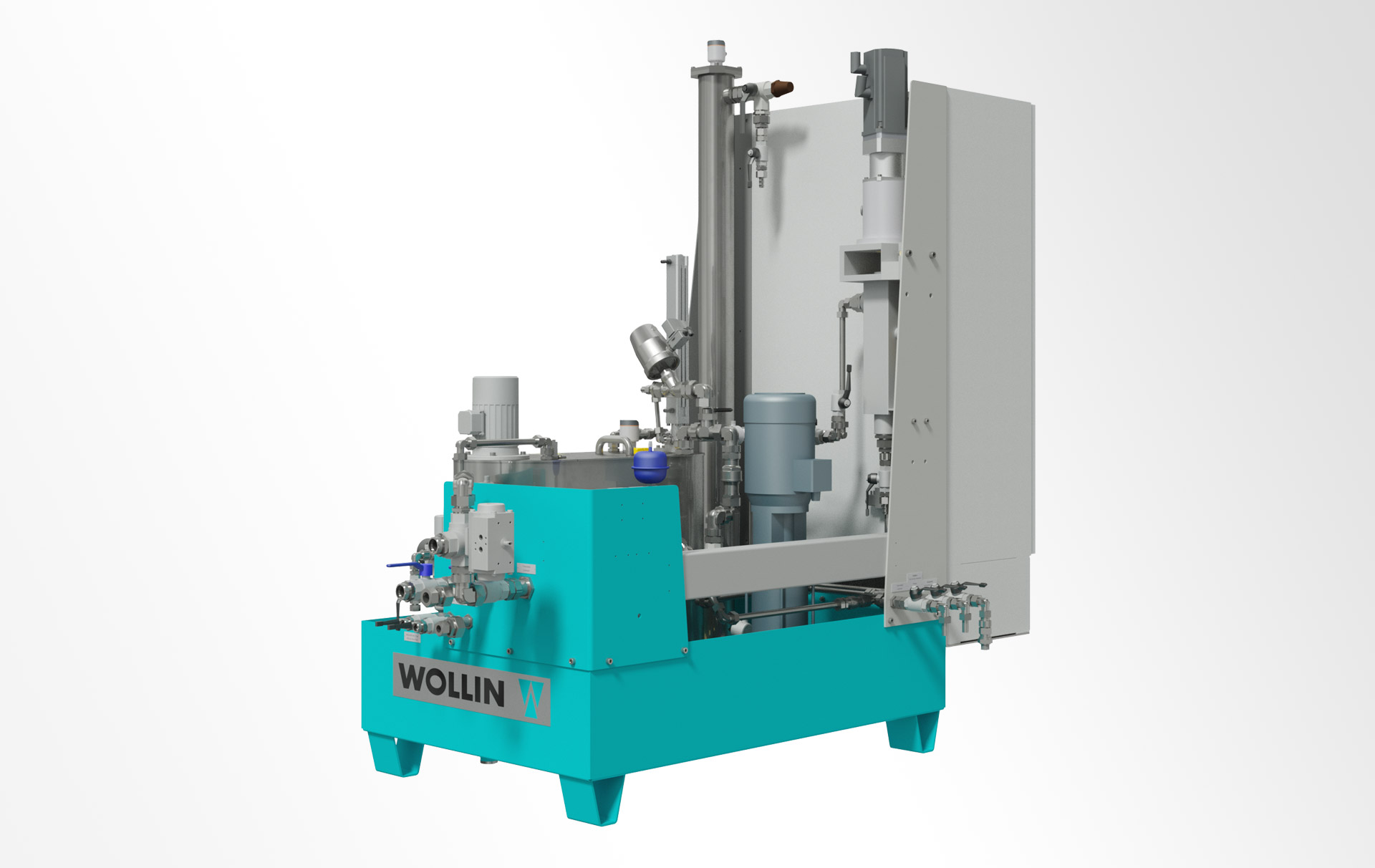

MDA100

  • Volumetric capacity mixture 80l
  • Spray agent amount maximum 100 litre/minute
  • Siemens controller with visualisation
  • Electronic dosing pump
  • Mixing ratio and pressure are programmable
  • High-pressure inline pump with pressure control for mixture supply
  • Can be used for several machines
  • Optional: Turbidity sensor, indicator light, level column, rinsing cycle, double diaphragm pump (concentrate)
MDA 100
MDA 100

OSA

Release agent supply for the OSA series was designed specifically for minimum quantity spraying. OSA is used in connection with WOLLIN dosing nozzles DD and fine spray nozzles FSD.

OSA1-50-2

  • Volumetric capacity 50l
  • Stainless steel
  • Manual filling
  • Adjustable medium pressure 0.15-7 bar
  • Mobile
  • Leakage monitoring
  • Siemens small control system with indicator light
OSA 1

OSA2-15-C

Release agent supply identical to OSA2-15 (properties unchanged).

New practical features:

  • Control cabinet protecting against dirt and other influences
  • Signal lights on the control cabinet
  • Integrated flushing line: flushing of the machine (ESM, PSM, PSR) with water using a 3-way valve
Release Agent Supply OSA2-15-C

OSA2-15

  • Volumetric capacity 2x15L
  • Stainless steel
  • Double diaphragm pump for alternate filling of the containers
  • Fine pressure regulator for release agent pressure 0.15-3 bar
  • Indicator light Lack of release agent
  • Leakage monitoring
OSA 2
